XENTHRA XN-H81M-VH 4th Gen mATX Motherboard

XENTHRA XN-H81M-VH 4th Gen mATX Motherboard

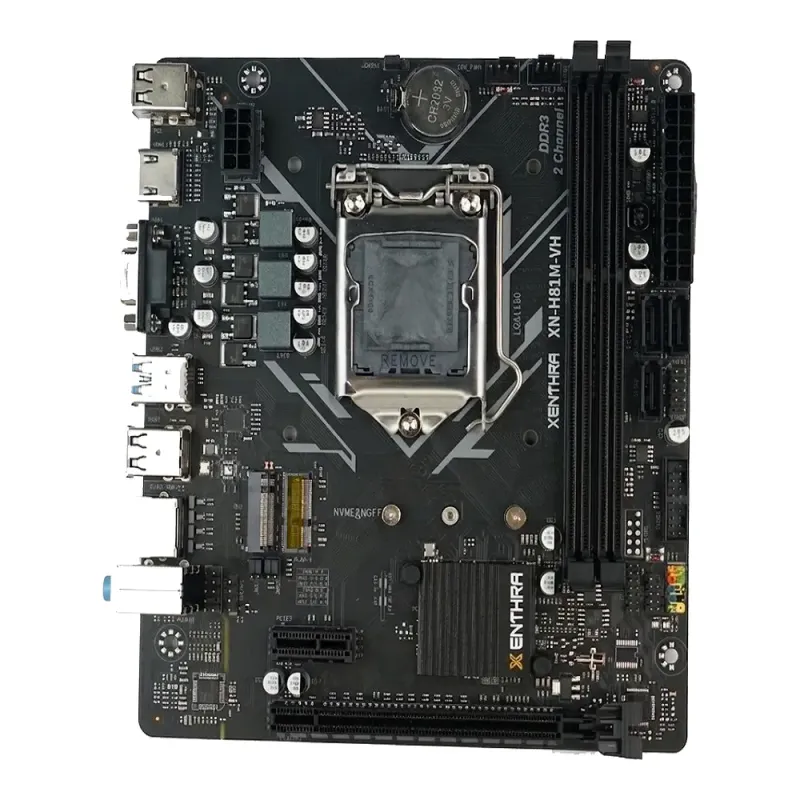

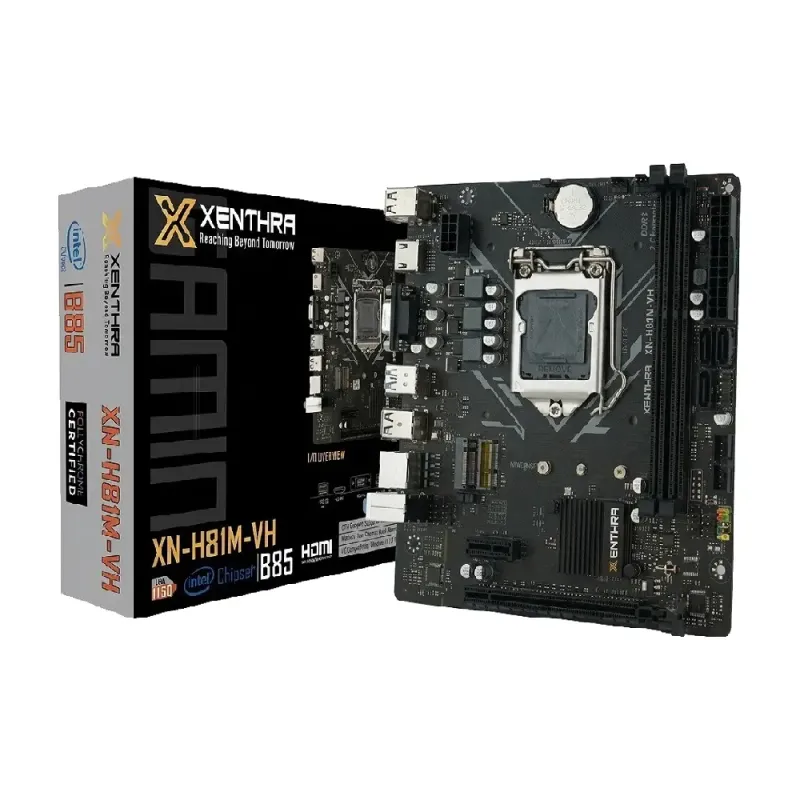

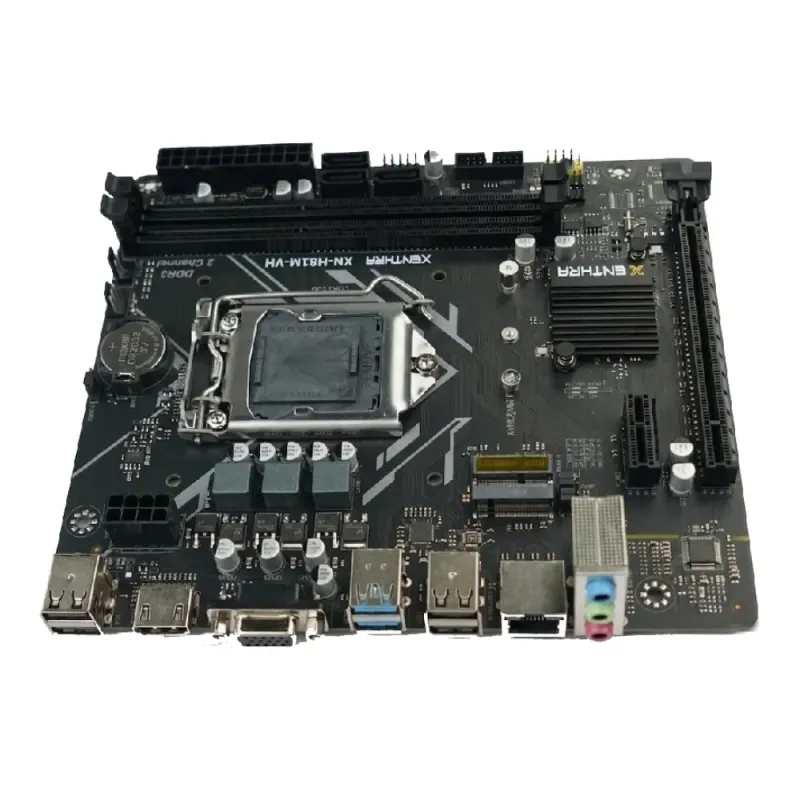

XENTHRA XN‑H81M‑VH 4th Gen mATX Motherboard is a versatile platform built to support Intel’s 4th Generation processors, including Core i7, i5, i3, Pentium, Celeron, and Xeon E3‑1200 v3 series. Powered by the Intel B85 Express Chipset and designed with the LGA 1150 socket, this XENTHRA XN‑H81M‑VH 4th Gen Motherboard offers a solid foundation for budget and mid‑range desktop builds. Its compact micro‑ATX form factor (180mm x 216mm) makes it suitable for space‑efficient setups without compromising on essential features.

Memory support includes two DDR3 DIMM slots (240‑pin) with speeds of 1600/1333/1066 MHz, allowing up to 16GB of RAM for smooth multitasking and stable performance. Expansion options are practical, with one PCIe 2.0 x16 slot for graphics cards and one PCIe 2.0 x1 slot for add‑on components. This XENTHRA 81 motherboard ensures flexibility for users who want to upgrade or expand their system.

Connectivity is well‑rounded, featuring HDMI and VGA outputs, two USB 3.0 ports, four USB 2.0 ports, and a Realtek Gigabit LAN port for fast networking. Storage options include an M.2 slot supporting both NVMe PCIe 2.0 x4 and SATA 3.0 NGFF modes via hardware jumper selection, giving users modern SSD compatibility. The XENTHRA XN‑H81M‑VH Motherboard also includes an M.2 Wi‑Fi/WLAN slot for wireless connectivity, along with multiple internal headers for fans, TPM 2.0, diagnostic cards, and front panel connections.

With 3.5mm audio jacks for Line‑In, Line‑Out, and Mic‑In, plus reliable power delivery through a 24‑pin ATX main connector and 4‑pin CPU power receptacle, the XENTHRA 4th Gen Motherboard balances performance, expandability, and everyday usability. It is a practical choice for users seeking a dependable motherboard for upgrading or building a stable desktop system.

Buy XENTHRA XN-H81M-VH 4th Gen mATX Motherboard from Brotherhood IT

In Bangladesh, you can get original XENTHRA XN-H81M-VH 4th Gen mATX Motherboard From Brotherhood IT. We have a large collection of latest XENTHRA Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Brotherhood IT Shop to get yours at lowest price. The XENTHRA XN-H81M-VH 4th Gen mATX Motherboard comes with 3 years warranty.

Specification

Basic Information
Supported CPU	Support for Intel 4th Gen Core i7 / i5 / i3, Pentium, Celeron, and Xeon E3-1200 v3 series CPU Socket: LGA 1150
Chipset	Intel B85 Express Chipset
Form Factor	Micro-ATX (180 mm x 216 mm)
Audio	3x 3.5mm Audio Jacks (Line-In, Line-Out, Mic-In)
Expansion Slots
PCI	1x PCIe 2.0 x16 Slot, 1x PCIe 2.0 x1 Slot
Memory
Type	DDR3
Slots	2x DDR3 DIMM Slots (240-pin)
Supported Memory	1600 / 1333 / 1066 MHz
Maximum Memory	Up to 16 GB (Supports up to 8 GB per single slot)
Connector & Ports
HDMI	1x HDMI
VGA (s)	1x VGA (D-Sub)
USB (s)	2x USB 3.0 Ports, 4x USB 2.0 Ports
LAN Port (s)	1x RJ45 Gigabit LAN Port (Realtek Gigabit Controller)
Wireless Communication module	1x M.2 Wi-Fi / WLAN Slot
Supported Storage	1x M.2 Slot (Supports NVMe PCIe 2.0 x4 & SATA 3.0 NGFF modes via hardware jumper selection)
Audio	3x 3.5mm Audio Jacks (Line-In, Line-Out, Mic-In)
Internal I/O Ports	2x FUSB 2.0 Headers (Supports 4 additional USB 2.0 front ports) 1x 4-Pin CPU Fan Connector, 1x 3-Pin System (SYS) Fan Connector 1x 14-Pin TPM 2.0 Header, 1x 2×5-Pin Diagnostic Card Header, 1x JCMOS Header 1x FPANEL Front Panel Header, 1x Front Panel Audio Header 24-Pin ATX Main Power + 4-Pin 12V CPU Power Receptacle
Warranty Information
Manufacturing Warranty	3 Years
