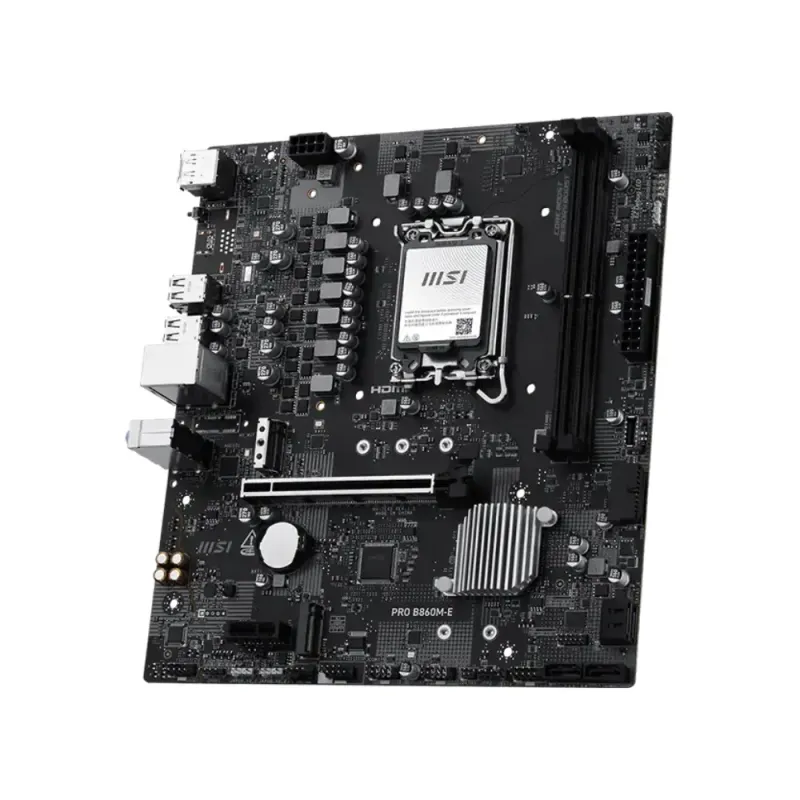

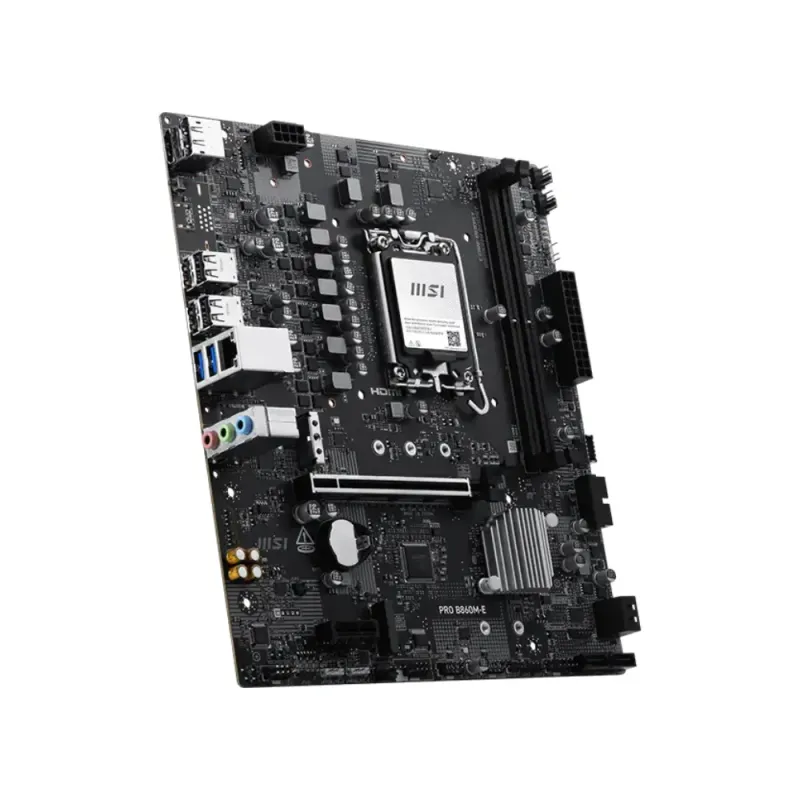

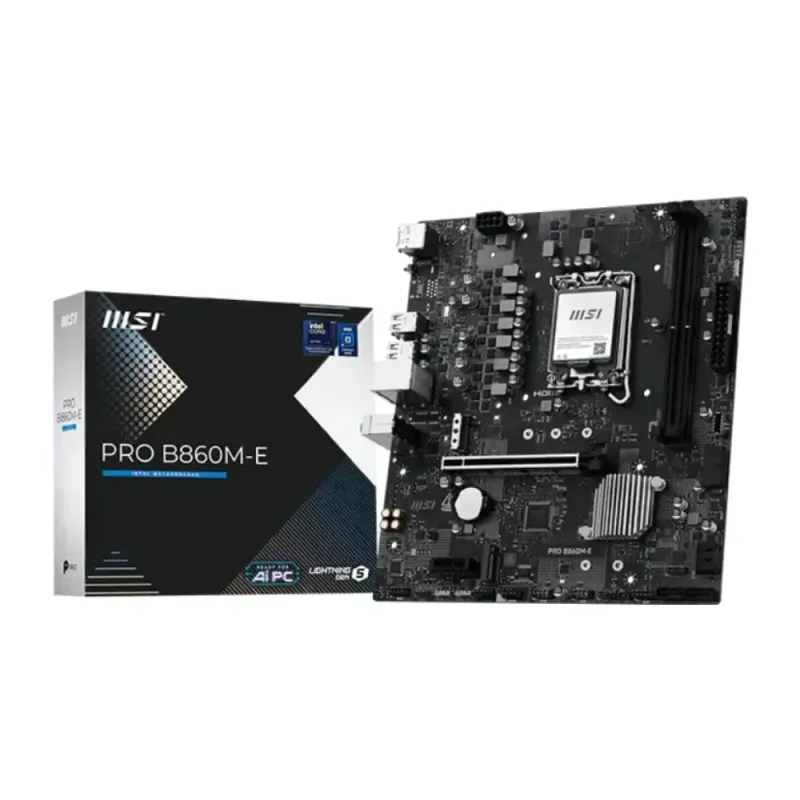

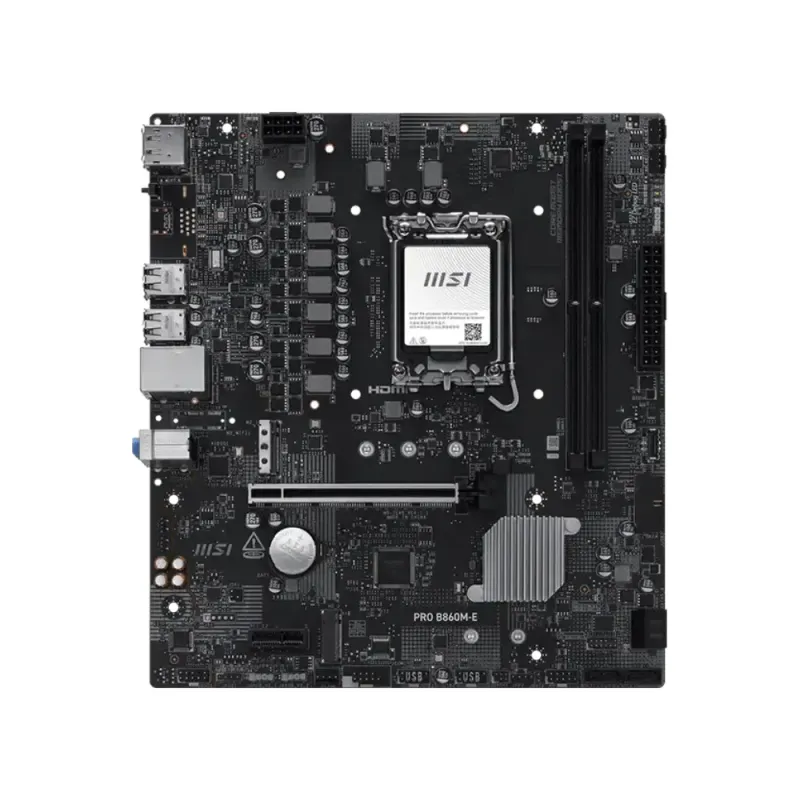

MSI PRO B860M-E LGA 1851 mATX Motherboard
- Brand: MSI
- Product Code: 001739
- Availability: In Stock
৳18,711/-
MSI PRO B860M-E LGA 1851 mATX Motherboard
The MSI PRO B860M-E LGA 1851 mATX Motherboard comes with advanced Intel B860 chipset . This Motherboard supports Intel Core Ultra Processors Series 2 through the advanced LGA 1851 socket. This MSI mATX Motherboard supports dual-channel DDR5 memory with two UDIMM slots and maximum memory capacity support up to 128GB. MSI DDR5 Motherboard technology supports DDR5 overclocking speeds from 9066 MT/s to 6400 MT/s and JEDEC speeds from 6400 MT/s to 4800 MT/s.
The MSI PRO B860M-E Motherboard supports Intel XMP 3.0, memory overclocking, non-ECC unbuffered memory, dual-controller dual-channel mode, and modern CUDIMM memory compatibility. This MSI LGA 1851 Motherboard achieves maximum overclocking speeds up to 9066+ MT/s for 1DPC 1R memory and 7200+ MT/s for 1DPC 2R memory. MSI PRO B860M-E LGA 1851 mATX Motherboard includes HDMI 2.1 and DisplayPort 1.4 outputs supporting smooth 4K 60Hz visual performance for professional and multimedia applications.
The motherboard provides one PCIe 5.0 x16 slot from the CPU and one PCIe 4.0 x1 slot from the chipset for expansion flexibility. MSI PRO B860M-E Motherboard offers two M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4 SSD storage alongside four SATA 6G ports. MSI Motherboard connectivity includes Realtek 8126 5Gbps LAN, USB 10Gbps Type-C, multiple USB 5Gbps Type-A ports, and convenient front USB connectivity.
Realtek ALC897 7.1-channel high-definition audio provides immersive sound quality for gaming, entertainment, and productivity workflows with reliable audio clarity. MSI PRO B860M-E mATX Motherboard also features EZ Debug LEDs, TPM 2.0 support, RGB connectors, efficient cooling headers, and Windows 11 compatibility within a compact 220mm x 243.84mm design.
Buy MSI PRO B860M-E LGA 1851 mATX Motherboard from Brotherhood IT
In Bangladesh, you can get original MSI PRO B860M-E LGA 1851 mATX Motherboard From Brotherhood IT. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Brotherhood IT Shop to get yours at lowest price.The MSI PRO B860M-E LGA 1851 mATX Motherboard has 3 year warranty.
Specification
| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2) | |
| Chipset | INTEL B860 | |
| Form Factor | mATX 220mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2x UDIMM | |
| Supported Memory | Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 1x DisplayPort 1.4 |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126 5Gbps LAN | |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
