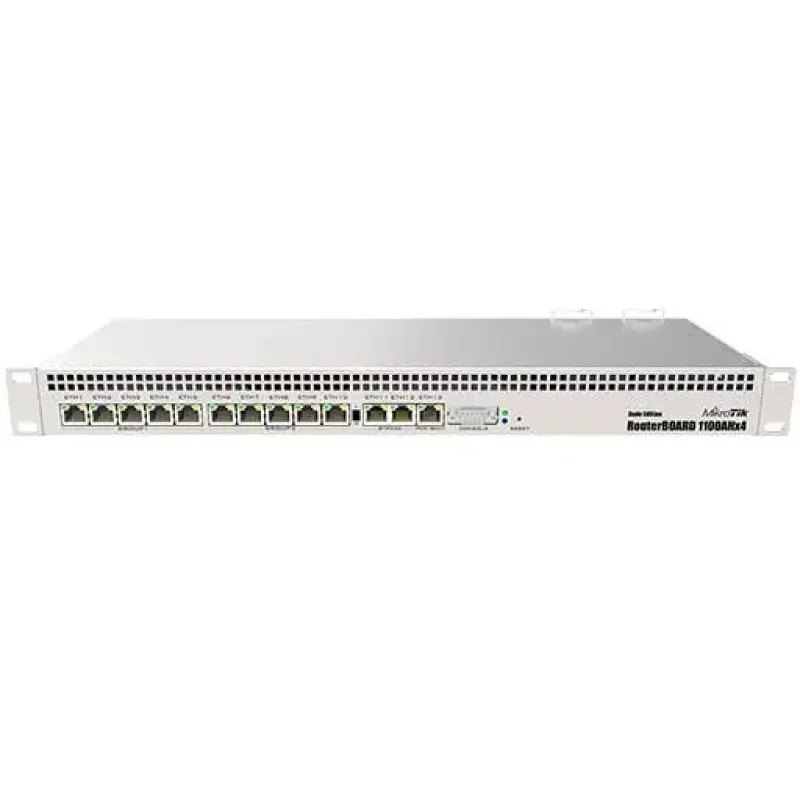

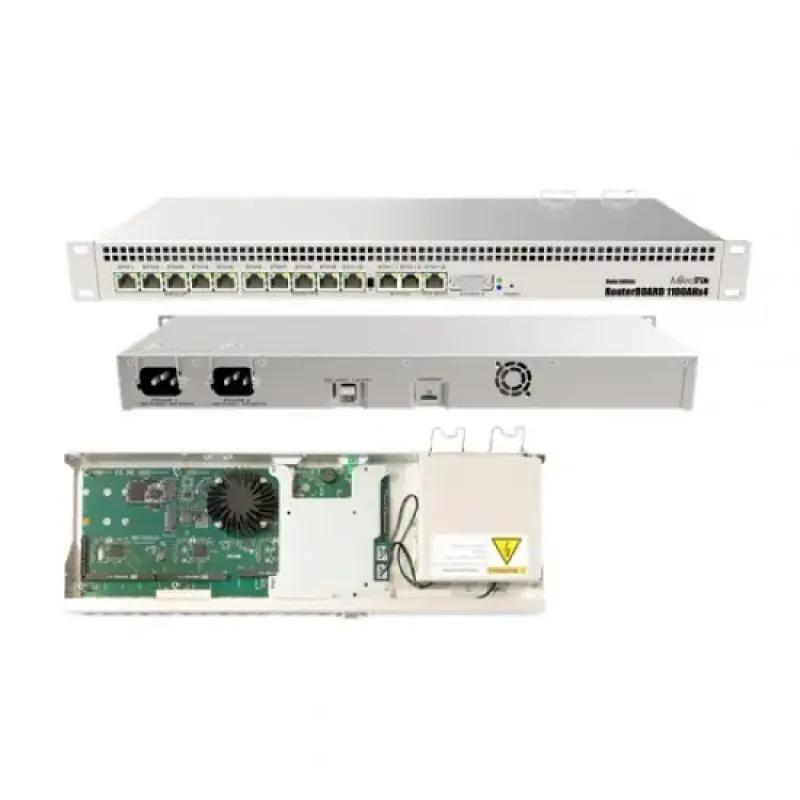

Mikrotik RB1100AHX4 (Dude Edition With Sata Port) Rackmount 13X Gigabit Ethernet Router
- Brand: Mikrotik
- Product Code: 006398
- Availability: In Stock
৳43,857/-
Mikrotik RB1100AHX4 (Dude Edition With Sata Port) Rackmount 13X Gigabit Ethernet Router
The Mikrotik RB1100AHx4 13x Gigabit Ethernet Rackmount Router is powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128). Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
Specification
| Key Features | ||
| Data Rate | 10/100/1000 | |
| Frequency | 1.4 GHz | |
| Interface | Architecture ARM 32bit CPU AL21400 CPU core count 4 CPU nominal frequency 1.4 GHz License level 6 Size of RAM 1 GB Storage size 128 MB Storage type NAND |
|
| Ports | PoE-out ports 13 Memory card type microSD Memory Cards 1 Serial port RS232 |
|
| Others | Current Monitor Yes PCB temperature monitor Yes Voltage Monitor Yes Mode button Yes Tested ambient temperature -40°C to 70°C |
|
| Operating System Support | Operating System RouterOS | |
| Power Source | ||
| Power Mode | PoE in 802.3af/at PoE in input Voltage 20-57 V Number of AC inputs 2 AC input range 100-240 Number of DC inputs 2 (2-pin terminal, PoE-IN) 2-pin terminal input Voltage -48, 12-57 V Max power consumption 20 W |
|
| Physical Dimension | ||
| Shell Color | White | |
| Dimension | 444 x 148 x 47 mm | |
| Manufacturer warranty | ||
| Warranty | 01 year warranty | |
