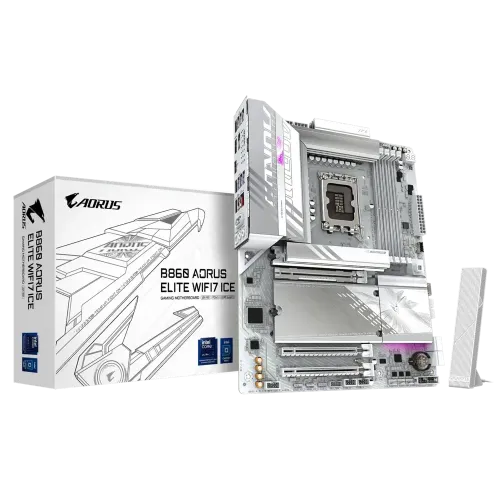

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard
- Brand: GIGABYTE
- Product Code: 001859
- Availability: In Stock
৳35,937/-
Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard
The Gigabyte B860 AORUS ELITE WIFI7 ICE ATX Motherboard is an innovative design that maximizes the performance of Intel's newest Core Ultra Processors. It has the LGA1851 socket and the Intel B860 Express chipset. This powerful Gigabyte motherboard supports DDR5 memory at speeds of up to 9200 MT/s (OC) across four DIMM slots, with dual-channel design supporting up to 256 GB for smooth multitasking and gaming. The Gigabyte B860 AORUS ELITE WIFI7 ICE ATX provides excellent visual output with Intel HD Graphics. It supports quad-display setups via USB4, DisplayPort 2.1, and HDMI 2.1, giving ultra-clear resolutions of up to 4096x2160 at 60 Hz. Realtek 2.5 GbE LAN and Wi-Fi 7 provide ultra-fast, low-latency networking, while Bluetooth 5.4 allows for easy wireless device pairing. A PCIe 5.0 x16 slot for graphics cards or NVMe SSDs, as well as two PCIe 4.0 x1 slots for extra devices, provide many expansion options. Storage options include three M.2 connectors (one PCIe 5.0, two PCIe 4.0) and four SATA 6Gb/s ports, with support for RAID 0, 1, 5, and 10. The rear I/O panel of the Gigabyte B860 AORUS ELITE WIFI7 ICE Motherboard is packed with a USB4 Type-C port, multiple USB 3.2 Gen 2 and Gen 1 ports, optical S/PDIF Out, and dual antenna connectors for enhanced wireless performance. Additional standout features include comprehensive cooling solutions, customizable RGB lighting with Gen2 LED headers, and Gigabyte’s signature Q-Flash Plus for effortless BIOS updates. Whether you’re a gamer, content creator, or tech enthusiast, the Gigabyte B860 AORUS ELITE WIFI7 ICE ATX Motherboard delivers top-tier performance, exceptional connectivity, and unmatched versatility, making it a perfect foundation for high-performance PC builds.
Buy Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard from Brotherhood IT
In Bangladesh, you can get original Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard From Brotherhood IT. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop. Order Online Or Visit your Nearest Brotherhood IT Shop to get yours at lowest price. The Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard comes with a 3-year Warranty.
Specification
| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors L3 cache |
|
| Chipset | Intel B860 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2) |
|
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules | |
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support) Support for up to quad-display at the same time |
|
| Connector & Ports | ||
| HDMI | 2 x HDMI | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
|
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 1 x front panel audio header 2 x audio jacks |
|

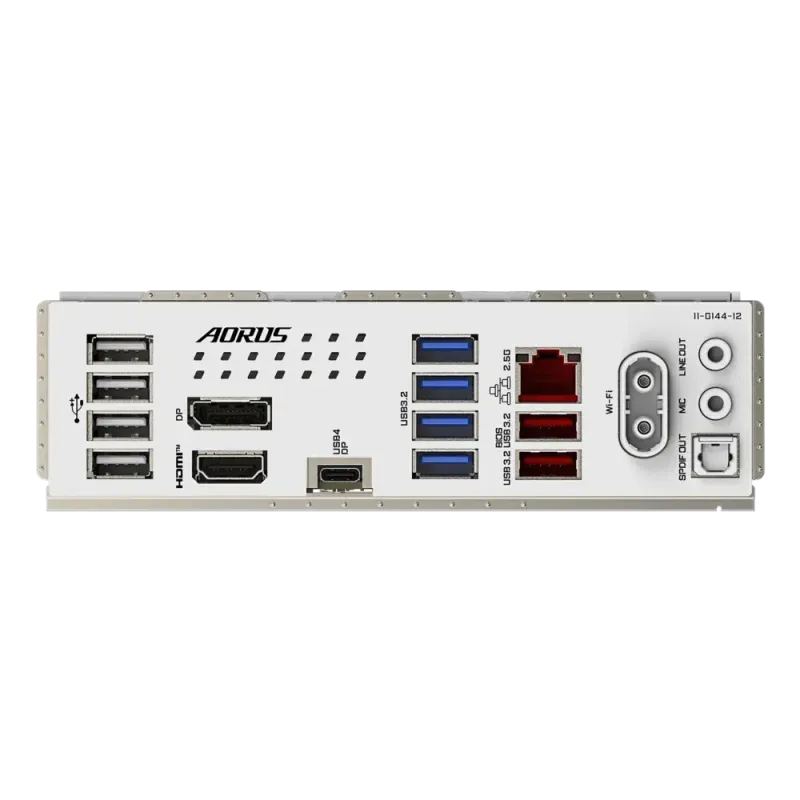

| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year Warranty | |
